AB 18

Inspection and Light Maintenance of Road and Railway Bridges and Viaducts

AB 18

Machine for inspecting and light maintenance of bridges, viaducts and railways, of 18.0m long, with articulated arm and basket to deliver great speed.

Designed to allow inspection and light maintenance of road and rail bridges and viaducts and designed to offer great maneuvering speed, agility and operational safety.

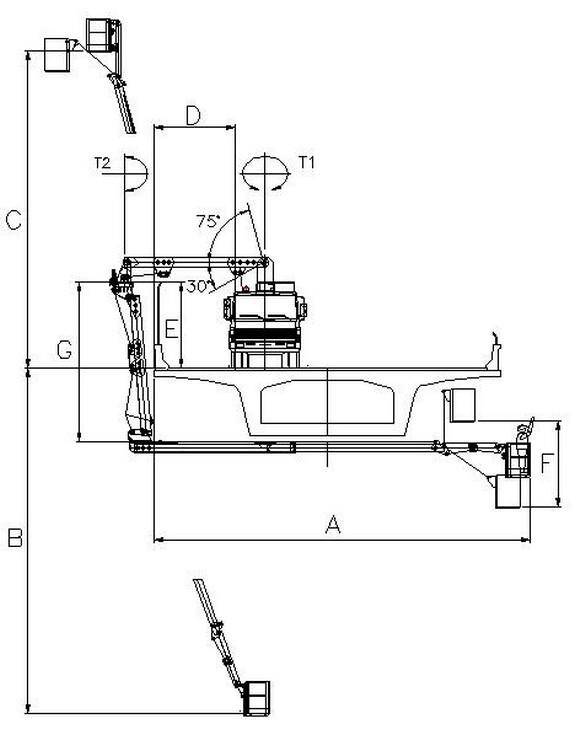

TECHNICAL FEATURES

+AB 18
 18.0m Length underbridge (A)
 20.5m Max. lowering depth underbridge (B)
 16.3m Max. raising height overhead (C)
 3.1m Max. overcoming of sidewalk (D)
 3.6m Max. overcoming of wind/noise barrier (E)
 3.0m Tilting height of boom b4 (F)
 6.3m  Length of boom b2 (G)
 180°  Rotation turntable t1 (T1)
 180°+90° Rotation turntable t2 (T2)
 300kg Safe working load of platform
 11.8m Overall length of unit
 2.5m  Overall width of unit
 4.0m  Overall height of unit
 26000kg  Total weight of unit
