ABC 200/L

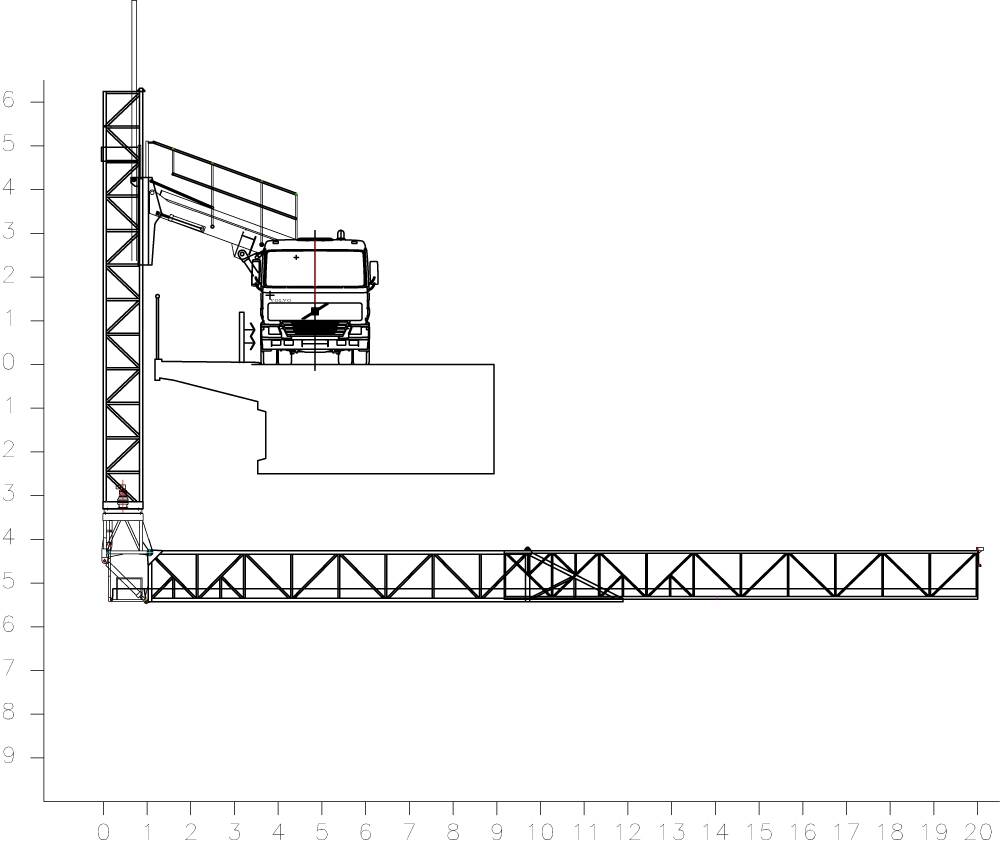

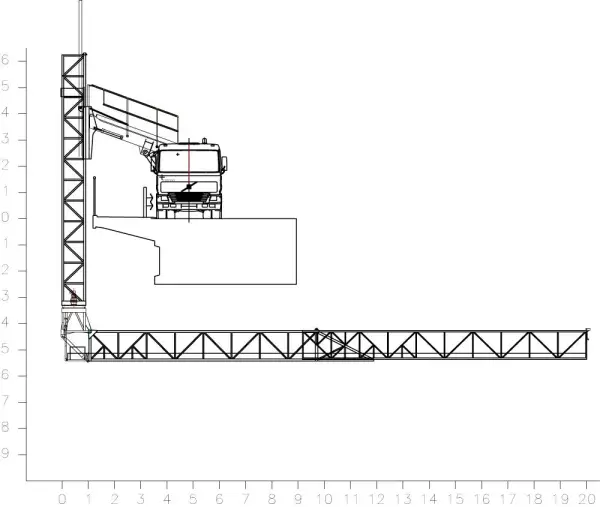

Machine mounted on a standard truck or trailer, with a platform of 20.0m in length and 1.05m / 1.2m in height, for the inspection and maintenance of road bridges.
It guarantees a safe, quick and economic system of access to those structures where erection of scaffoldings is not feasible or it is too costly.
TECHNICAL FEATURES
| 20.0m | Platform length |
| 1.05m | Platform width |
| 600kg | Max. payload of platform |
| 300kg | Max. payload of telescopic platform |
| 180° | Rotation range underbrige |
| 8.0m/9.0m | Max. lowering depth |
| 2.6m/2.85m | Max. overbridging of sidewalk |
| 2.1m/3.5m | Max. crossing of sound barrier |
| 2.5m | Space required on bridge |
| 25500kg/29000kg | Total weight of unit |
