ABC 150/LS

Inspection and maintenance of road bridges and viaducts

ABC 150/LS

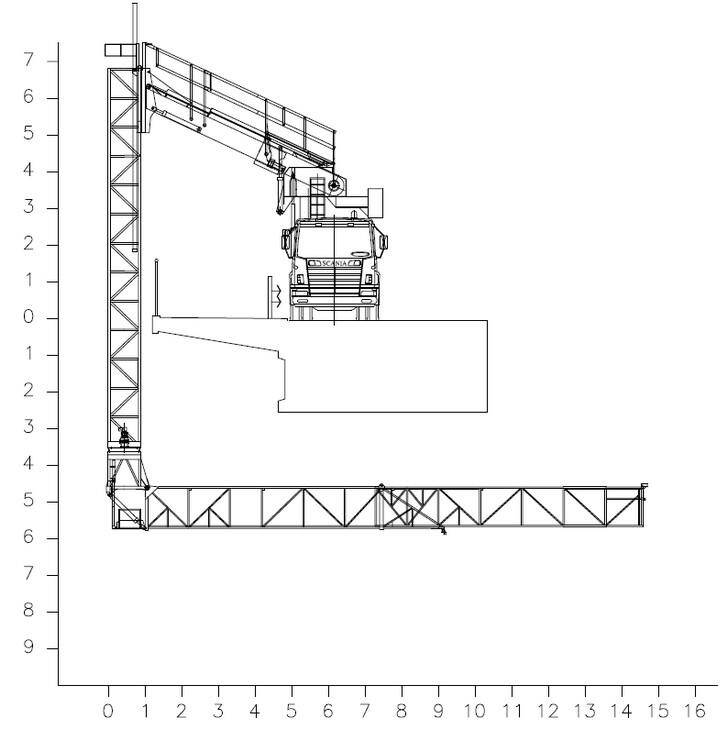

Machine mounted on a standard truck or trailer, with a 15.0 m long and 1.1 m high platform for the inspection and maintenance of road bridges.

ABC 150 / LS Machine mounted on a standard truck or trailer, with a 15.0 m long and 1.1 m high platform for inspection and maintenance of road bridges. It guarantees a safe, fast and economical access system to structures where it is not feasible or economically sustainable to set up a scaffolding. Video CATALOG TECHNICAL FEATURES + 16.0m Platform length 1.3m Platform height 500kg Max. Load on platform 200kg Max. Load on telescopic platform 180 ° Rotation range under bridge 9.0m Max. Descent tower 4.65m Max. Walkway 3.2m /5.4m Max. Noise barrier that can be overcome 2.5m Space required on deck 3200kg Total weight of the unit

TECHNICAL FEATURES

+ABC 150
 15.0m Platform length
 1.1m Platform width
 500kg  Max. payload of platform
 300kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 7.6m Max. lowering depth
 2.0m  Max. overbridging of sidewalk
 3.5m  Max. crossing of sound barrier
 2.5m  Space required on bridge
 18000kg Total weight of unit
