ABC Line

Inspection and Maintenance of Road Bridges

The products of the “ABC line” for inspection and maintenance of road bridges guarantee a safe, quick and economic system of access to those structures where erection of scaffoldings is not feasible or it is too costly.

FEATURES DETAIL

These products guarantee a safe, quick and economic system of access to those structures where erection of scaffoldings is not feasible or it is too costly.

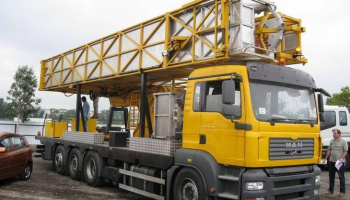

The ABC units, mounted on standard trucks or trailers, take a few minutes only to deploy from the rest position to the work position, without personnel on board.

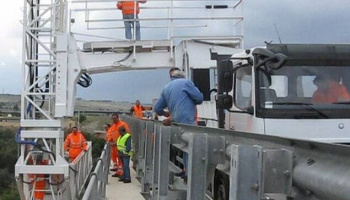

Only after launching maneuvers are over operators are enabled to descend on board the platform through the provided protected access and from there they can communicate with personnel on bridge deck by means of an intercom system.

The launching of platform, which has a length comprised between 5 and 23 meters depending on the model, is operated by proportional controls and hydraulic power supply.
The traversing maneuver of the unit in forward and reverse on bridge deck with platform deployed underneath is governed from platform control station, with the consent of the driver in the cab.
Suitable to operate in the most strained environmental conditions, the ABC units allow access to bridges having barriers up to more than 5 m height and, thanks to the “Descender” device, they enable to check the condition of piers up to more than 50 m depth.

Equipped with emergency electro pump, the units can be supplied fitted of other accessories such as generator and compressor with air and water plants and “Assistant Ladder” mounted on platform to enable access of personnel inside the girders for inspection of bridge soffits.

The spacious platforms of the ABC range enable the operators to carry out any sort of heavy-duty repair works underneath bridge decks by the use of electric/hydraulic/pneumatic operated tools which are supplied directly from the outlets provided on board the platform. Demolition works can be also carried out by means of hammers, after previous protection of the platform with plastic covers against the fall of debris.

The use of the ABC machines is made possible as well on bridges having very high wind/noise barriers up to 5.4 m. for the standard models, which can be increased to even bigger heights on special request. The system used to make possible the crossing of such high bridge barriers does not require to mount/dismount parts of the machine on the spot to enable operation.

Moreover, the time required to deploy the equipment also across high barriers is limited to a few minutes only. The smallest unit ABC 60 of the range, being mounted on a truck chassis of 3.5 tons GVW only, is specifically designed to enable quick and easy access to the underside of bridges of limited dimensions. Thanks to its high versatility and high performances, matched to its low cost, the ABC 60 is the ideal machine for local Road Authorities and private Contractors who are taking care of inspection and repair works of small-size bridges belonging to the regional and local road networks.

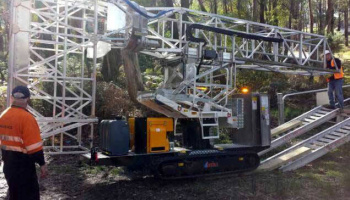

ABC 50/C

Tracked machine with a platform of 5.0 m in length and 1.1 m in height, for the inspection and maintenance of road bridges

5.0m Platform length
1.1m  Platform width
200kg  Max. payload of platform
200kg  Max. payload of telescopic platform
180°  Rotation range underbrige
4.1m Max. lowering depth
1.1m  Max. crossing of sound barrier
1.8m  Max. barriera antirumore superabile
1.6m  Space required on bridge
3000kg Total weight of unit



SCHEDA COMPLETA

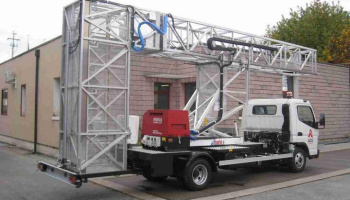

ABC 60/L

Machine mounted on a standard truck or trailer, with a 6.0 m long platform: it is the ideal machine for both public road bodies and private construction companies that carry out inspection and maintenance work on small bridges.

6.0m Platform length
1.0m Platform width
300kg  Max. payload of platform
150kg  Max. payload of telescopic platform
135°  Rotation range underbrige
4.0m Max. lowering depth
1.7m  Max. overbridging of sidewalk
2.0m Max. crossing of sound barrier
2.0m  Space required on bridge
3500kg Total weight of unit

SCHEDA COMPLETA

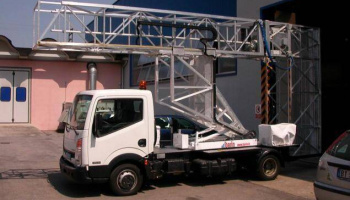

ABC 70/L

Machines that allow access to work under road bridges, viaducts and railway bridges with a 7.0 m long platform.

 7.0m Platform length
 1.1m Platform width
 350kg  Max. payload of platform
 150kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 5.0m Max. lowering depth
 1.7m  Max. overbridging of sidewalk
 2.0m

Max. crossing of sound barrier

 2.2m  Space required on bridge
 5700kg Total weight of unit

SCHEDA COMPLETA

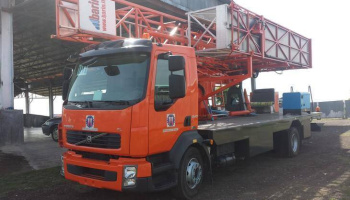

ABC 110/L

Machine mounted on a standard truck or trailer, with a platform of 11.0 m in length and 1.05 m in height, for the inspection and maintenance of road and railway bridges

 11.0m Platform length
 1.05m Platform width
 600kg  Max. payload of platform
 300kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 6.0m Max. lowering depth
 2.0m  Max. crossing of sound barrier
 2.5m / 3.1m Max. overbridging of sidewalk
 2.5m  Space required on bridge
 14000kg Total weight of unit

SCHEDA COMPLETA

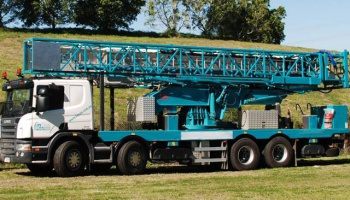

ABC 150/LS

Machine mounted on a standard truck or trailer, with a 15.0 m long and 1.1 m high platform for the inspection and maintenance of road bridges.

 15.0m Platform length
 1.1m Platform width
 500kg  Max. payload of platform
 300kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 7.6m Max. lowering depth
 2.0m  Max. overbridging of sidewalk
 3.5m  Max. crossing of sound barrier
 2.5m  Space required on bridge
 18000kg Total weight of unit

SCHEDA COMPLETA

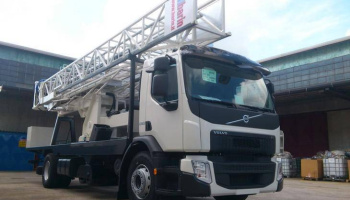

ABC 160/LS

Machine mounted on a standard truck or trailer, with a 16.0m long platform for inspection and maintenance of road bridges.

 16.0m  Platform length
 1.3m Platform width
 500kg  Max. payload of platform
 200kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 9.0m Max. lowering depth
 4.65m  Max. overbridging of sidewalk
 3.2m /5.4m Max. crossing of sound barrier
 2.5m  Space required on bridge
 32000kg Total weight of unit

SCHEDA COMPLETA

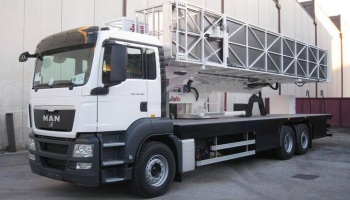

ABC 170/L

Machine mounted on a standard truck or trailer, with a 17.0 m long and 1.3 m high platform, for the inspection and maintenance of road bridges.

 17.0m Platform length
 1.3m Platform width
 800kg  Max. payload of platform
 400kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 8.0m/9.0m Max. lowering depth
 2.58m  Max. overbridging of sidewalk
 2.1m /3.4m/4.1m Max. crossing of sound barrier
 2.5m  Space required on bridge
 26000kg Total weight of unit



SCHEDA COMPLETA

ABC 200/L

Machine mounted on a standard truck or trailer, with a platform of 20.0m in length and 1.05m / 1.2m in height, for the inspection and maintenance of road bridges.

 20.0m Platform length
 1.05m Platform width
 600kg  Max. payload of platform
 300kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 8.0m/9.0m Max. lowering depth
 2.6m/2.85m Max. overbridging of sidewalk
 2.1m/3.5m  Max. crossing of sound barrier
 2.5m  Space required on bridge
 25500kg/29000kg Total weight of unit

SCHEDA COMPLETA

ABC 230/L

Machine mounted on a standard truck or trailer, with a platform of 23.0 m in length and 1.5 m in height, for the inspection and maintenance of road bridges.

 23.0m Platform length
 1.5m Platform width
 600kg  Max. payload of platform
 300kg  Max. payload of telescopic platform
 180°  Rotation range underbrige
 8.5m Max. lowering depth
 2.85m Max. overbridging of sidewalk
 2.0m/3.2m  Max. crossing of sound barrier
 2.5m  Space required on bridge
 32000kg  Total weight of unit

SCHEDA COMPLETA
