A modern department of MECHANICAL WORKMANSHIP TO THIRD PARTIES to carry out mechanical works on any kind of material on customer’s behalf.
We rely on a wide machinery fleet, on lifting devices up to 20 tons and on a highly qualified and skilled staff in a position to satisfy all production requirements and operating within limited working time.
This great flexibility allows us to carry out the works on elements of medium and large dimensions and constitutes the point of force of the company.
Also, our company is in a position to offer the elements completely finished, being that we are equipped of forefront sand-blasting and painting facilities.
TA - 25 A
SMALL PIECES AT HIGH SPEED
High-speed milling machine, fixed bed, model “TA-25 AUTOMATIC”, complete with automatic indexing head 2,5° x 2,5° - rotary table (vertical/horizontal) having a diameter of 500 mm. continuous (0.001°), max. table load capacity 1.500 Kg.
- Longitudinal traverse mm 2500
- Vertical traverse mm 1250
- Cross traverse mm 1000

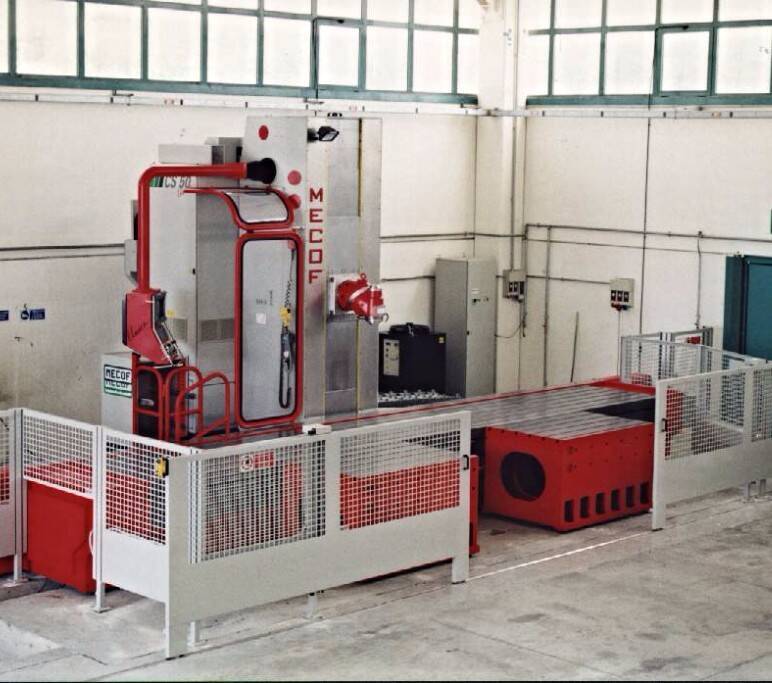

CS50
EVERYTHING YOU NEED
High-speed milling machine, moving column, model “UNICA CS50”, complete with automatic indexing head 2,5° x 2,5°.
- Longitudinal traverse mm 10000
- Vertical traverse mm 1800
- Cross traverse mm 1000
FR - 20000
THE BIG ONE
High-speed milling machine, moving column, model “FR-20000”, complete with two automatic change heads “in program”: the first is fixed horizontal with a length of 1000 mm., the second is an automatic indexing head 1° x 1°. This milling machine is also equipped with a rotation/translation unit fitted with a continuous rotary table (0.001°), surface 2500x2500 mm., 1500 mm. cross traverse, table load capacity 40.000 Kg.
- Longitudinal traverse mm 20000.
- Vertical traverse mm 4500.
- Cross traverse mm 1600.
